DEVI Display Connect Digital Thermostat with Bluetooth and Zigbee wireless control
Wireless digital thermostat with 7 day schedule timer

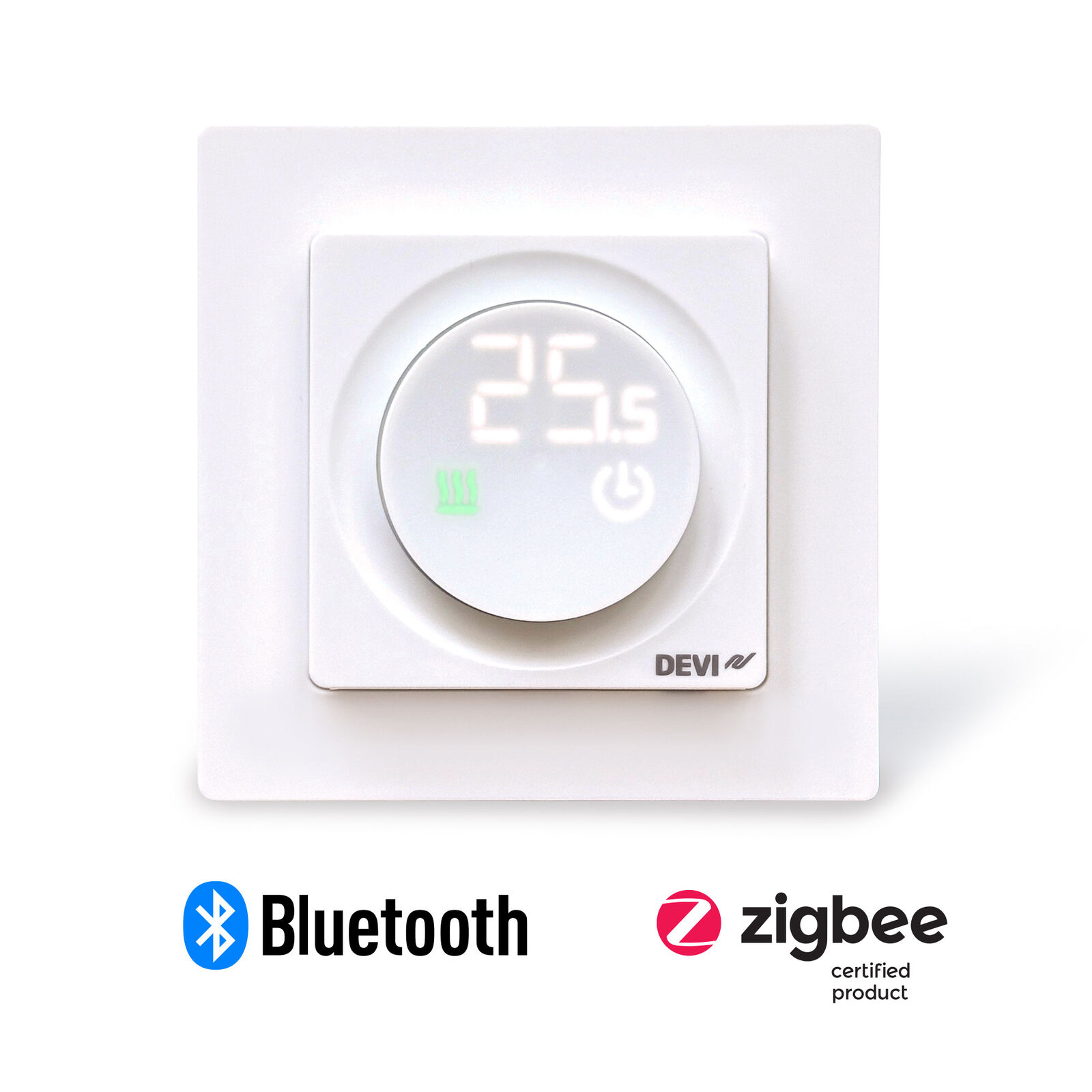

DEVIreg™ Display Connect
DEVIreg™ Display Connect is an intuitive programmable timer thermostat, with both Bluetooth and Zigbee connectivity option for combined, room or floor temperature control, complying with Eco design Lot 20, used for controlling electrical floor heating elements. The thermostat is designed for fixed installation only. Due to the special designed 2-part construction it fits a wide range of frames.
The thermostat features a dial and display feature enabling intuitive control.DEVIreg™ Display Connect is fast and intuitive to setup using the wizard in the Bluetooth app. It has an energy saving program - including an optimum start (pre-heat) control ensuring the desired temperature, with a wide range of floor sensors, at the correct time and thereby reducing the heating costs significantly.'
(For Zigbee connectivity which permits away-from-home control, a DEVI Connect Gateway 140F1166 is required)
- Eco design compliant Lot 20
- Works out of box
- Bluetooth and Zigbee thermostat
- In app setup wizard
- Fits extensive frame selection
- Compatible with 7 sensors types
- Sensor failure monitoring
- Adaptive PWM control
- Pre Heating
- Multilanguage app
- Shine through display
- Quick exchange system
- Multiple control modes
- Tested best in class design
(140F1162)
5 Year DEVI WarrantyTM
| Nominal voltage | 220 V- 240V~ 50/60 Hz |
| Standby power consumption, max | 0,2 W |
| Relay: Resistive load Inductive load |
16A / 3680W @ 230V |
| Compatible sensors | NTC 15 kΩ @ 25 °C, 3 m. (default), NTC 2 kΩ @ 25 °C NTC 6.8 kΩ @ 25 °C, NTC 10 kΩ @ 25 °C, NTC 12 kΩ @ 25 °C, NTC 33 kΩ @ 25 °C, NTC 47 kΩ @ 25 °C |
| Regulation | PWM - Pulse Width Modulation |
| Frost protection | 4 °C - 14 °C (default 5 °C ) |
| Temperature range | 15 °C to 35 °C (room) 5 °C to 35 °C (45 °C with break out) (floor) |
| Cable specication for connectors terminals | Max: 1 x 4 mm² or 2 x 2.5 mm² |
| Ball pressure test | 75 °C |
| Pollution degree | 2 (domestic use) |
| Software class | A |
| Controller type | 1 B |
| Storage temperature and conditions | -25 °C to 60 °C, 90% RH non-condensing |
| Operating temperatures and conditions | 0 °C to 35 °C, 90% RH non-condensing |
| IP class | 21 |
| Protection class | Class II - |
| Immunity against voltage surges | Over Voltage Category III |
| Transmission frequency (GHz) | 2.400 – 2.4835 GHz |
| Transmission Power (dBm) | <10 dBm |
| Color | RAL9016 Polar white |
| Battery type or Name | Super Capacitor |
| Dimensions (H/W/D): | 85 mm x 85 mm x 20-24 mm (in-wall depth: 22mm) |
| Weight, net | 204 g |
| Battery back-up time, min | 1 hour |
| SKU | 140F1162 |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.120m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.001200000m3 |
| Unit Of Measure | ea |
