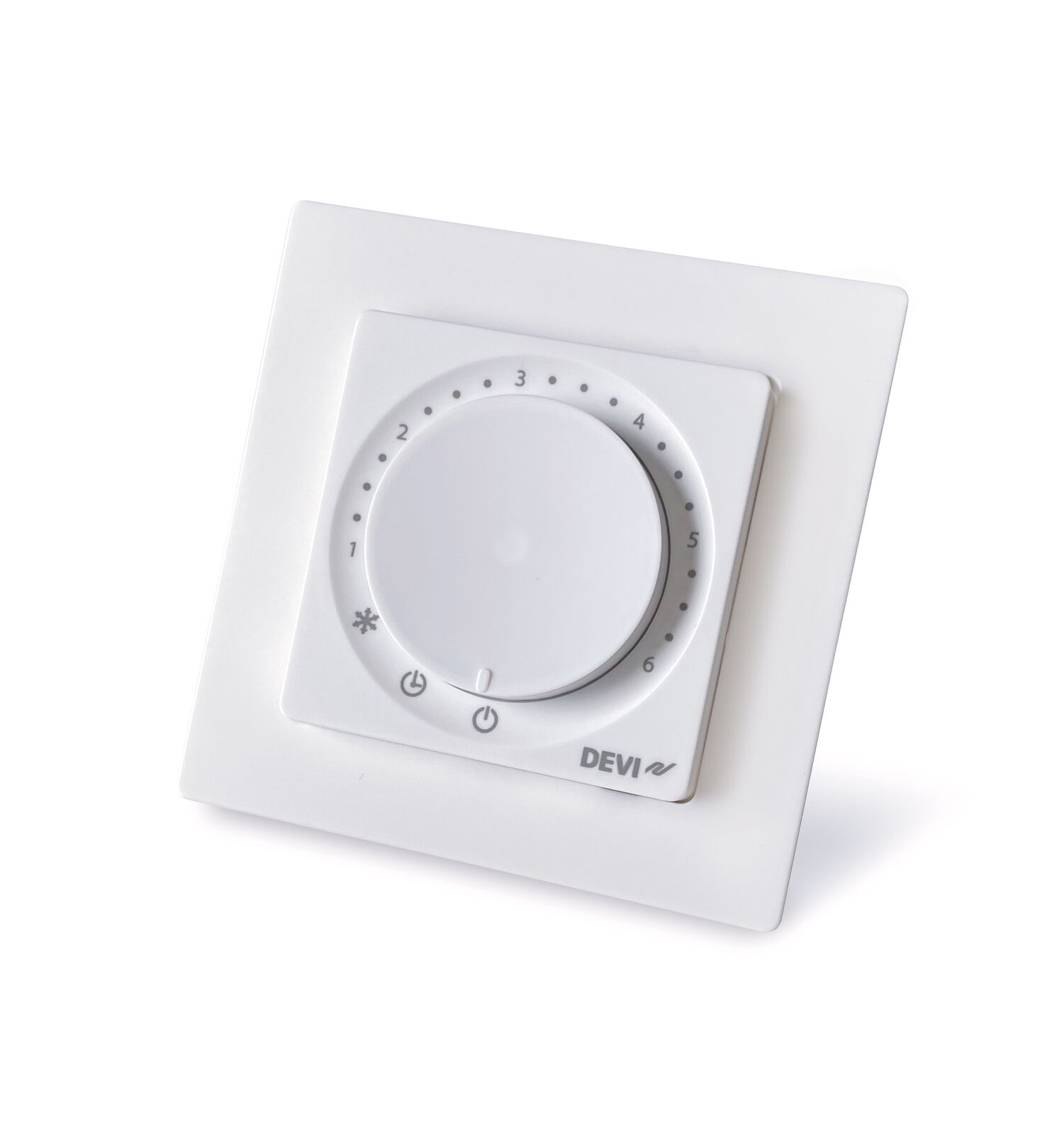

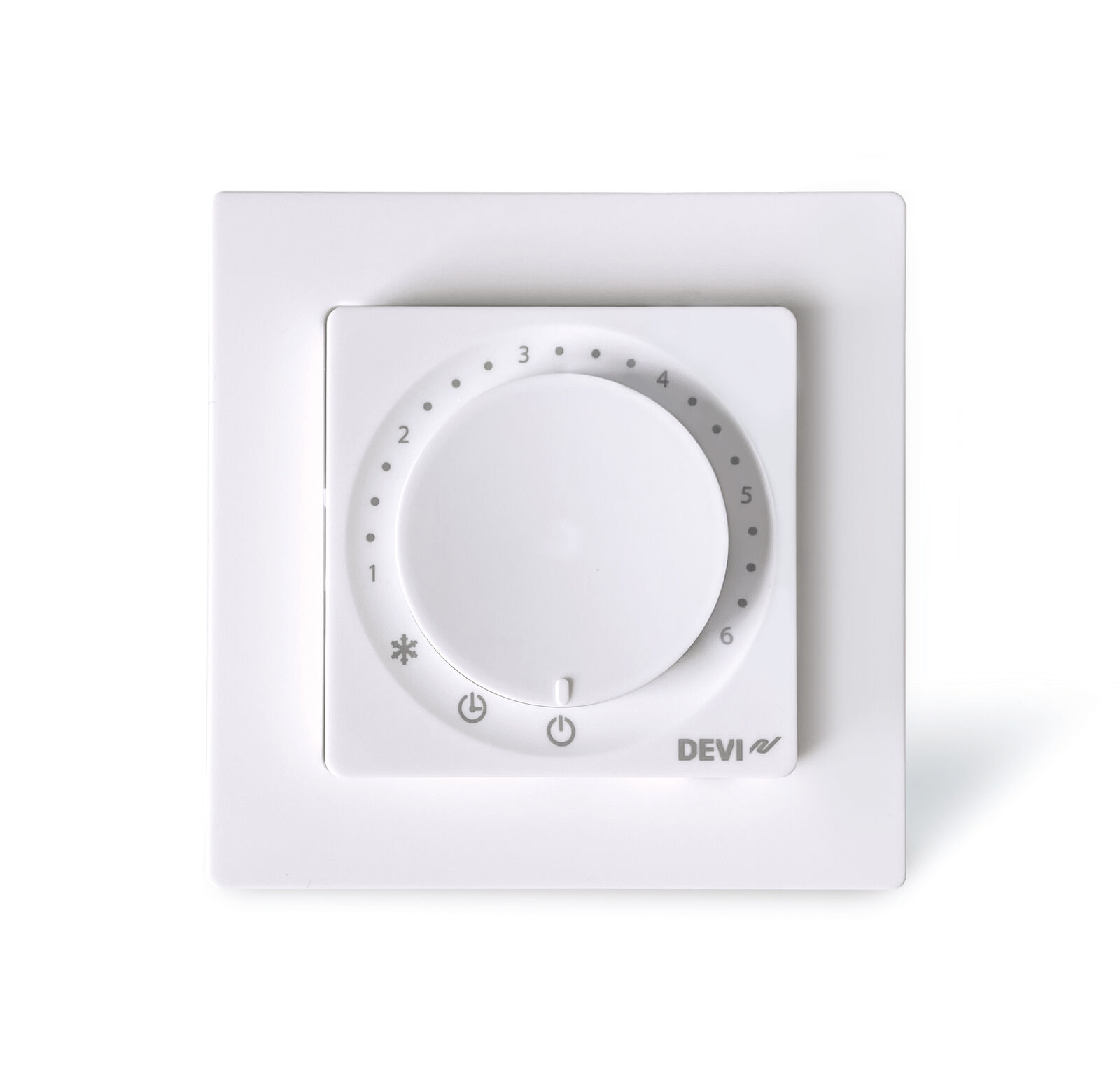

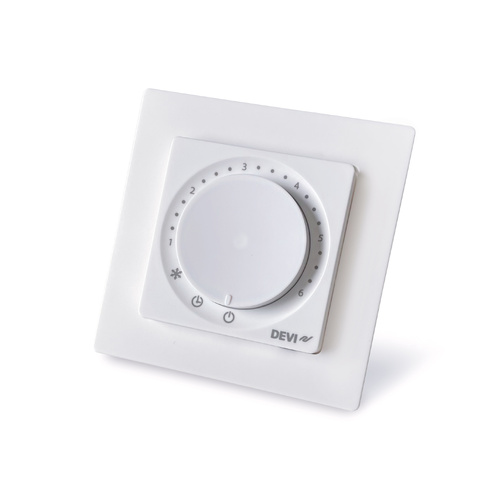

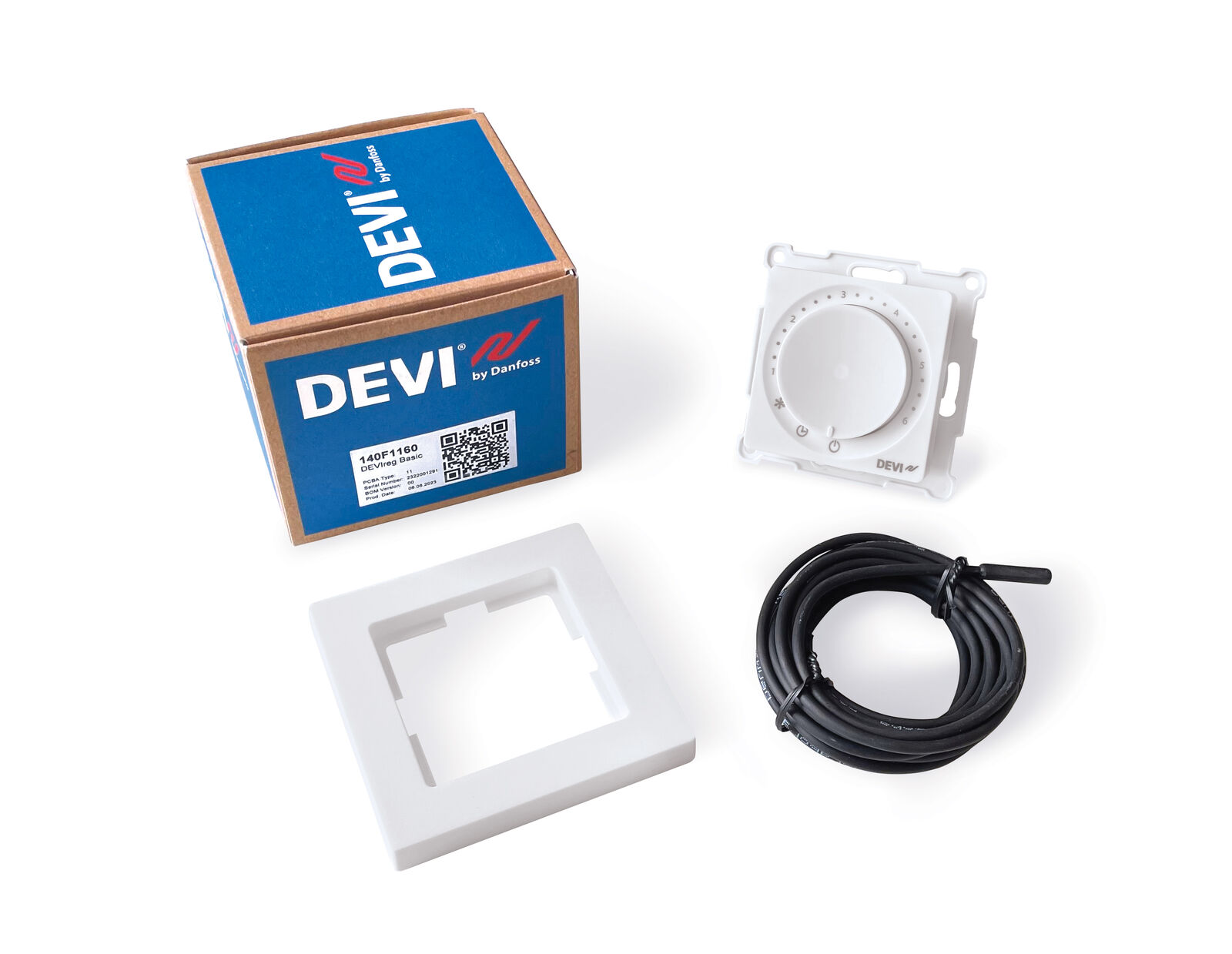

DEVIreg™ Basic is an intuitive programmable timer thermostat, for floor temperature control, complying with Eco design Lot 20, used for controlling electric floor heating elements. The thermostat is designed for fixed installation only. Due to the special designed 2-part construction it fits a wide range of frames in the 55 mm x 55 mm. The thermostat features a dial for manual temperature setting, feature enabling and intuitive control. DEVIreg™ Basic is fast and intuitive to setup using the in app wizard via bluetooh. It has an energy-saving program - including an optimum start (pre-heat) control ensuring the desired temperature, at the correct time and thereby reducing the heating costs significantly.

Click here for full technical details

(140F1160)

2 year

Nominal voltage

220 - 240 V, 50/60 Hz

Standby power consumption, max

0,2 W

Relay:
Resistive load
Inductive load

16A / 3680W @ 230V
Cos Φ = 0.3 max. 1A

Compatible sensors

NTC 15 kΩ @ 25 °C, 3 m. (default)

Regulation

PWM - Pulse Width Modulation

Frost protection

4 °C - 14 °C (default 5 °C)

Temperature range

5 °C to 35 °C
(45 °C with break out) (floor)

Cable specification for connectors terminals

Max: 1 x 4 mm2 or 2 x 2.5 mm2

Ball pressure test

75 °C

Pollution degree

2 (domestic use)

Software class

A

Controller type

1 B

Storage temperature and conditions

-25 °C to 60 °C, 90% RH non-condensing

Operating temperatures and conditions

0 °C to 35 °C, 90% RH non-condensing

IP class

21

Protection class

Class II -

Immunity against voltage surges

Over Voltage Category III

Dimensions (H/W/D):

85 mm x 85 mm x 20-24 mm
(in-wall depth: 22mm)

Weight, net

194 g

SKU 140F1160
Brand DEVIreg
Shipping Weight 0.2500kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
